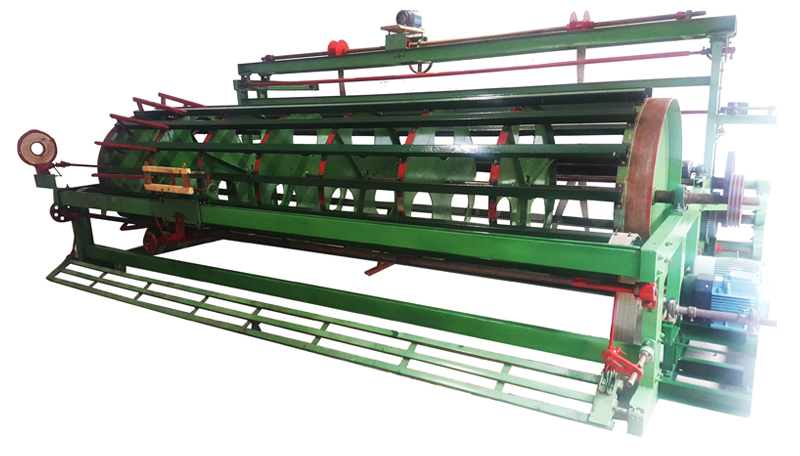

Sectional Warping Machine (Manual)

Home Products

Contact Info

Factorial Pvt. Ltd.
Gali Ajit Singh Wali, Dhapai Rd,
Near Railway Crossing,
Amritsar, Punjab 143001

Phone : 98159-786-66

Email : info@ajitpowerloom.com

Brochure

Download Brochure
chemical


Technical Specification:

1. Working Width : 1800 mm-6500 mm (72'' to 255'')
2. Drum Type : Open with M.S Tubings
3. Drum Circumference : 4mts
4. Cone Height : Adjustable with individual Cone Blade
5. Cone Blade Length : 750 mm to 850 mm
6. Warping Speed : 0 - 400 mtr / min
7. Beaming Speed : 0 - 500 mtr /min
8. Beam Flange Dia : 600 mm to 1250 mm
9. Beaming Section : Bult in with machine
10. Beam Doffing+Doming : Leather Brake System
11. Breaking System : Break with instant stop
12. Electric Motor : 3 [one for Warping + Beaming] [+one for Lift]


Features :

1. Mechanical Lift
2. Speed Gear Box for Diffrent type of Section
3. All M.S. Gears
4. Wide choice of Selection of working Width / Flange Dia.
5. Safety Device on Beaming Side
